Designing a Secure Wireless Network

Basic Principles of Security Designslide 5

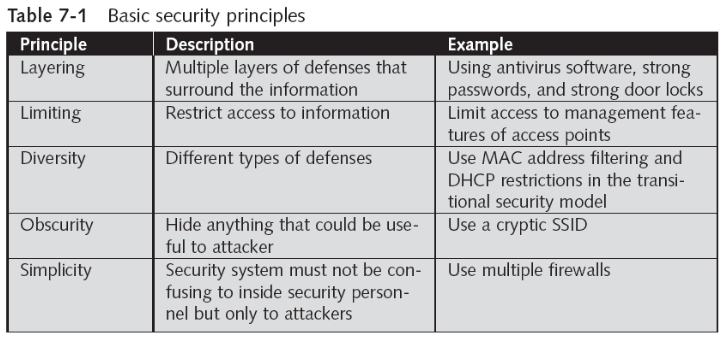

• Five key security principles
  • Layering
  • Limiting
  • Diversity
  • Obscurity
  • Simplicity

Layeringslide 6

• Wireless security should be created in layers
  • Making it unlikely that an attacker possesses the tools and skills to break through all the layers of defenses
• Layers include:
  • Strong door locks
  • Antivirus software
  • Strong passwords
• Problem with layered approach
  • All the layers must be properly coordinated to provide a cohesive security perimeter

Limitingslide 7

• Limiting access to information reduces the threat against it
• Only those who must use data should have access
• The amount of access granted to someone should be limited to what that person needs to know
• Limiting is more than placing a password on a system
• Users should have the least amount of information necessary to do their jobs, and no more

Diversityslide 8

• Closely related to layering
• Layers must be different (diverse)
  • If a thief penetrates one layer, he cannot use the same techniques to break through all other layers
• Using diverse layers of defense means:
  • Breaching one wireless security layer does not compromise the entire system
• Diversity in the transitional security model involves:
  • Implementing both MAC address filtering and DHCP restrictions

Obscurityslide 9

• Security by obscurity
  • Obscuring what goes on inside a system or organization and avoiding clear patterns of behavior
  • Makes attacks from the outside much more difficult
• Wireless information security
  • Important not to advertise what security is in place
  • Do not use predictable passwords
• Security by obscurity is sometimes criticized as being too weak

Simplicityslides 10–11

• Information security is, by its very nature, complex
• Complex security systems
  • Can be hard to understand, hard to troubleshoot, and hard to feel secure about
• Secure system should be simple enough for those on the inside to understand and use
• Challenge is to make the system simple from the inside but complex from the outside
  • Will reap a large benefit in information security

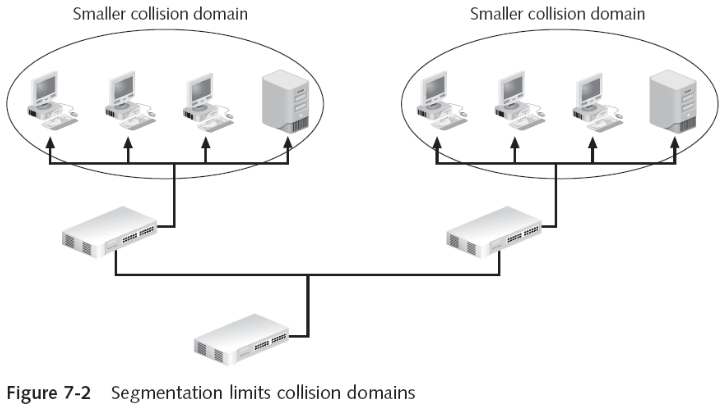

Network Segmentationslides 12–16

• Segmentation divides the network into smaller units
• Network segment is a subset of a larger network
• Reduces the amount of traffic on a network
• Non-deterministic networking
  • Devices share same media and send packet any time
• Collision: two packets are sent at the same time

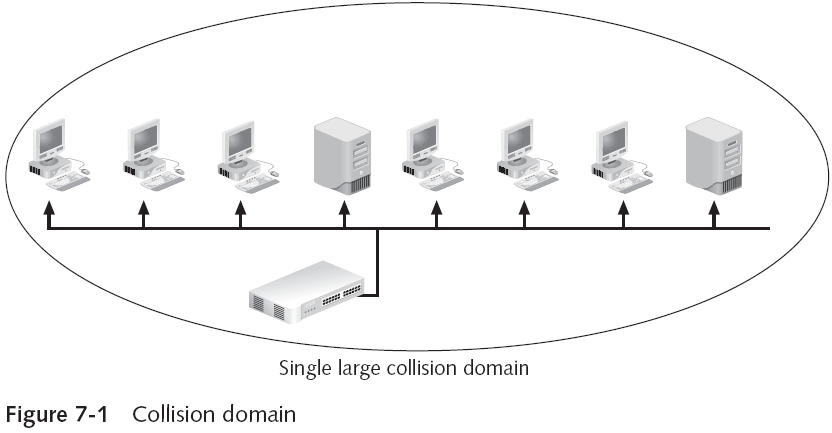

• Collision domain
  • Area that encompasses all of the network devices that can cause collisions

• Network segment and a subnet are different
  • Segment is created by connecting equipment to a physical device
  • Subnets are usually created by grouping together computers by Internet protocol (IP) addresses

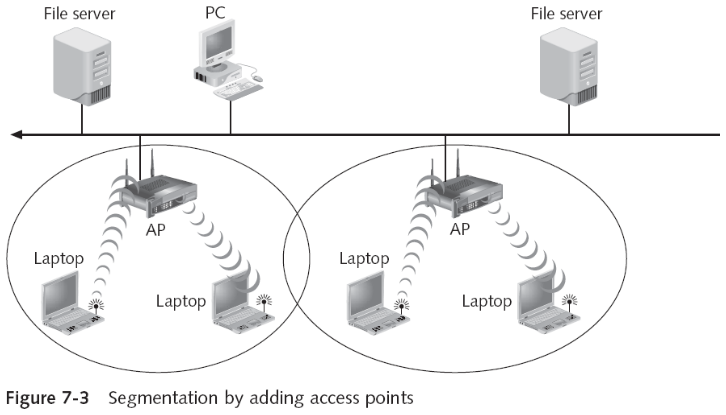

• Wireless segmentation can be accomplished through adding access points
  • Devices serviced by separate APs are not strictly sharing the same media
• Segmentation creates smaller segments for security

Segmenting with Devices and Technologiesslides 17–30

• Segments can be created using bridges, switches, and routers
• In wireless network, segments are created using:
  • Wireless gateways
  • Wireless routers
  • Wireless switches
  • Firewalls
  • Demilitarized zones
  • Network address translation

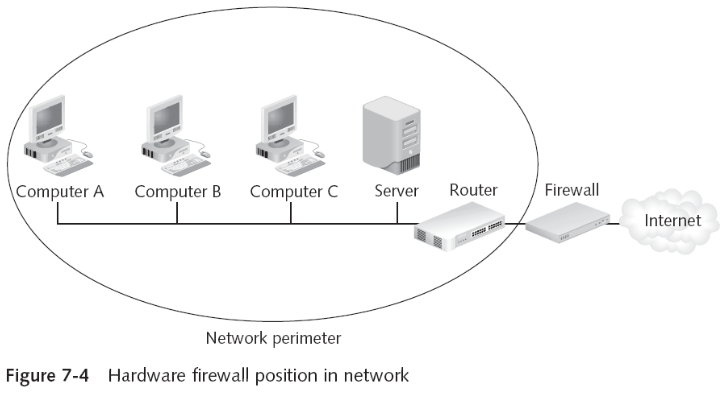

• Firewall
  • Sometimes called a packet filter
  • Designed to prevent malicious packets from entering the network or computer
  • Can be software based or hardware based
  • The foundation of a firewall is a rule base
    • Establishes what action the firewall should take when it receives a packet: allow, block, or prompt

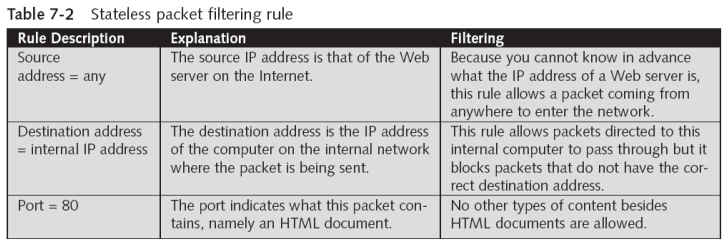

  • Stateless packet filtering
    • Looks at the incoming packet and permits or denies it based strictly on the rule base

• Firewall

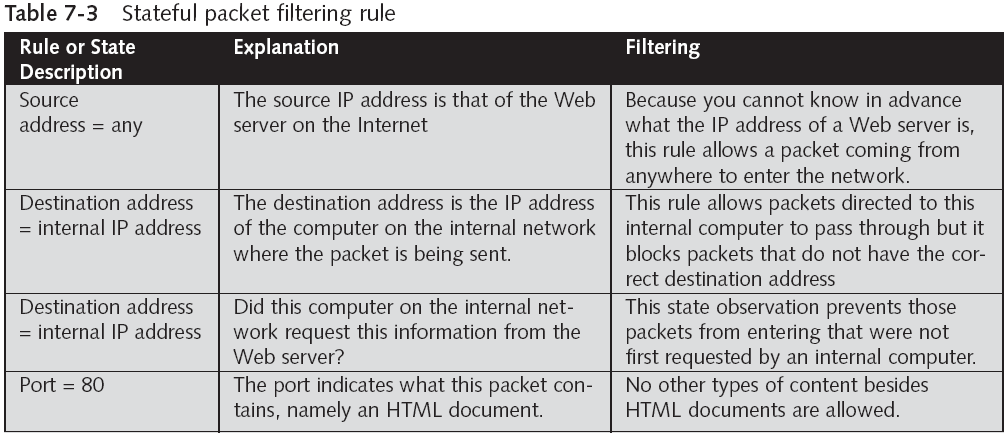

  • Stateful packet filtering
    • Keeps a record of the state of a connection between an internal computer and an external server
    • Makes decisions based on the connection and rule base
  • Firewalls are a critical tool for protecting a wireless network from attacks

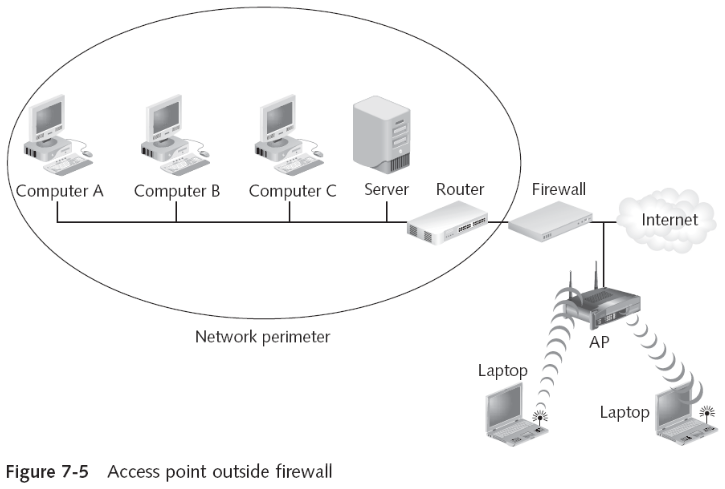

  • Many security experts maintain that wireless APs should be treated as “unsecure”
    • And placed outside of the firewall

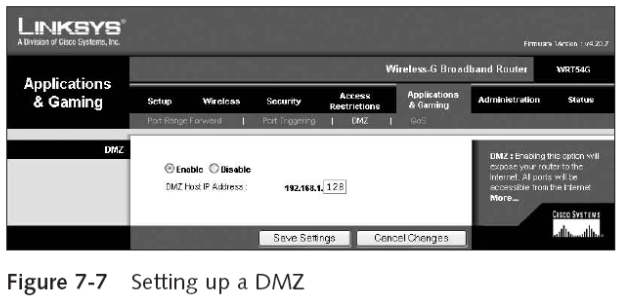

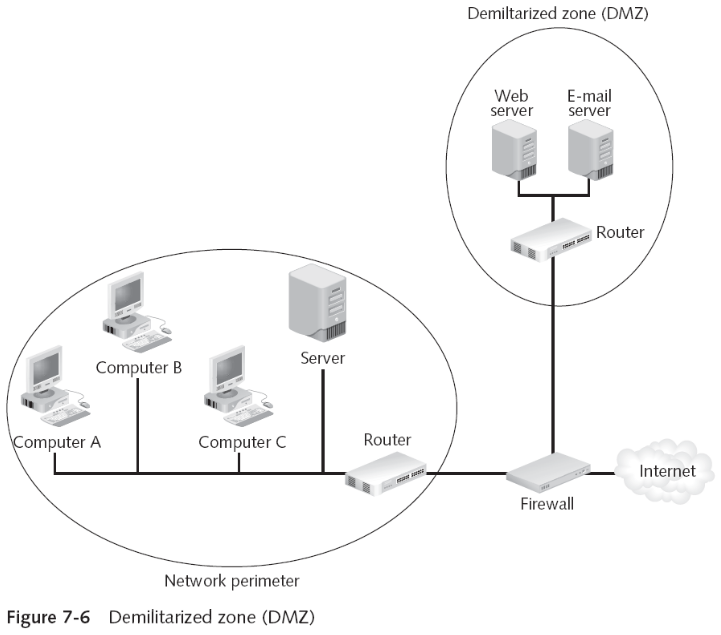

• Demilitarized zone (DMZ)
  • Separate network that sits outside the secure network perimeter and is protected by a firewall
  • Outside users can access the DMZ but cannot enter the secure network
  • May not be practical for a SOHO network

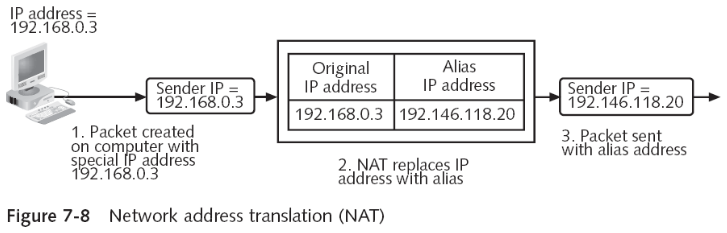

• Network address translation (NAT)
  • Replaces the sender’s actual IP address with another IP address

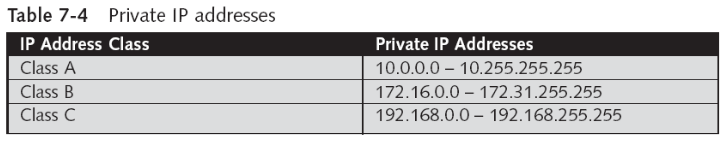

  • Private addresses
    • Designed to be used only on a private internal network

• Network address translation (NAT)
  • Private addresses
    • Cannot be used on the Internet
  • When using NAT, a private address is assigned to a network device
    • And replaced with a real address when a packet leaves the network
  • Port address translation (PAT)
    • Each packet is given the same IP address but a different port number
    • A single IP address is to be shared by several users

• Network address translation (NAT)
  • Advantages
    • Security
    • Conserves IP addresses
    • Segmentation
  • Disadvantages
    • Difficult troubleshooting
    • Problems with applications
    • Issues with security protocols
    • Performance impact

Segmenting by Virtual LANs (VLANs)slides 31–43

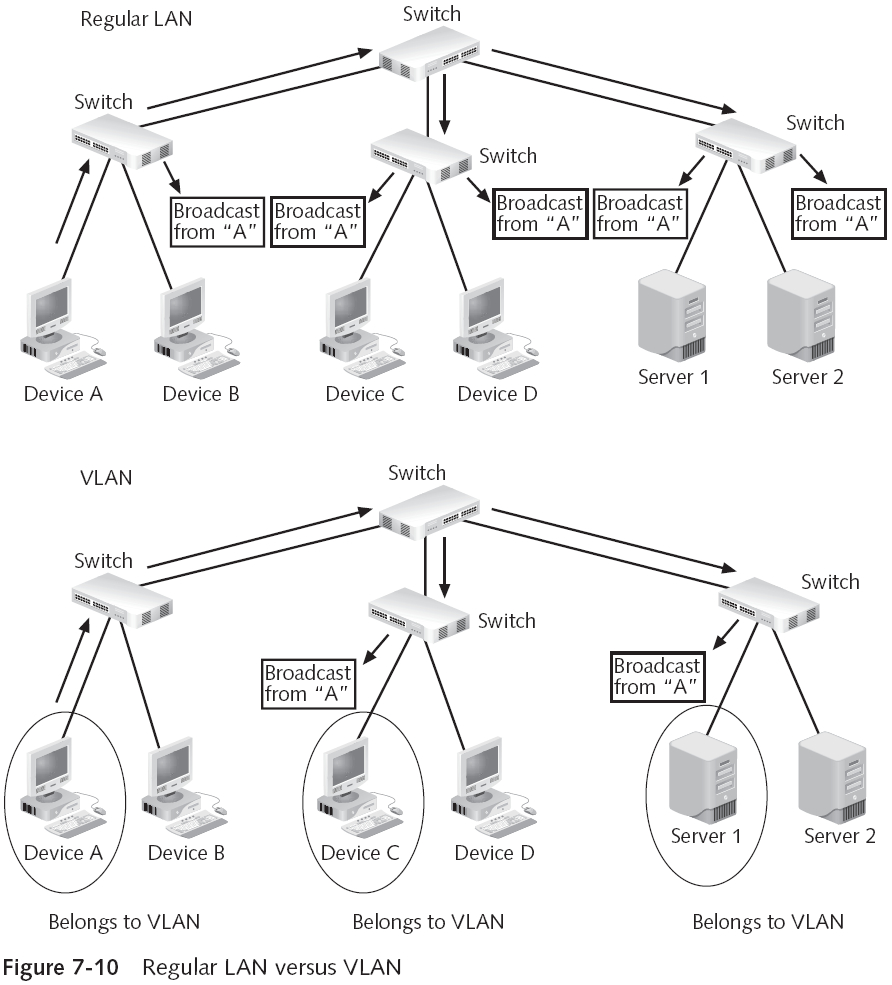

• Virtual local area network (VLAN)
  • Logical grouping of network devices within a larger network
  • Devices can be dispersed throughout the network
• How a VLAN works
  • Unicast transmission
    • Packet is sent to a single device
  • Broadcast transmission
    • Packet is sent to all network devices

• How a VLAN works

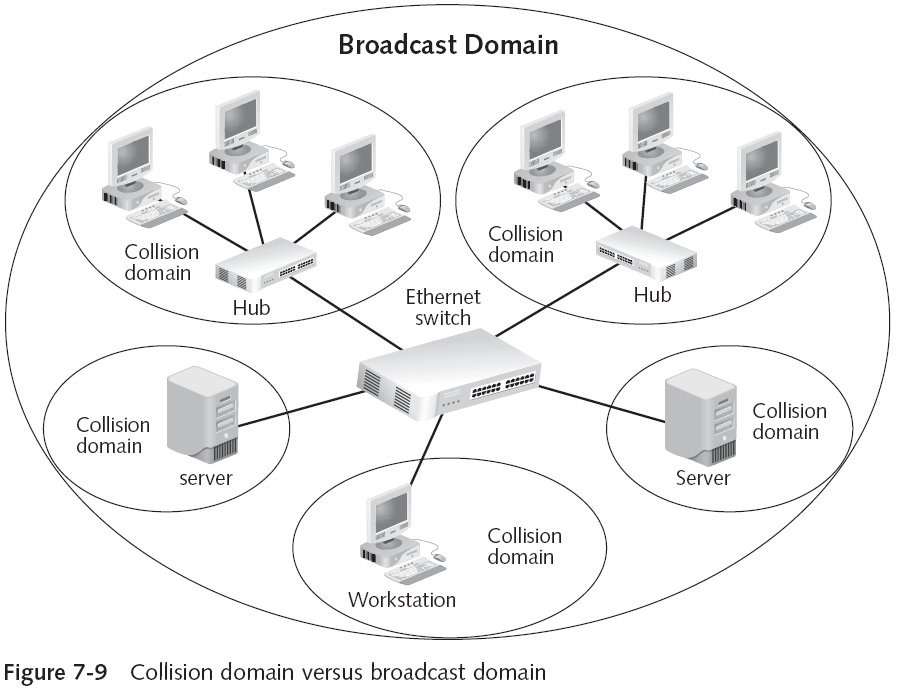

  • Broadcast domain
    • Area in which a broadcast occurs
  • Broadcasts can have an impact on network throughput as more devices send more broadcast transmissions
    • Can be solved creating a VLAN
  • The key to VLANs is the ability of the switch to correctly direct packets
  • IEEE 802.1q
    • Standard for marking VLAN packets
    • Supports trunking

• How a VLAN works

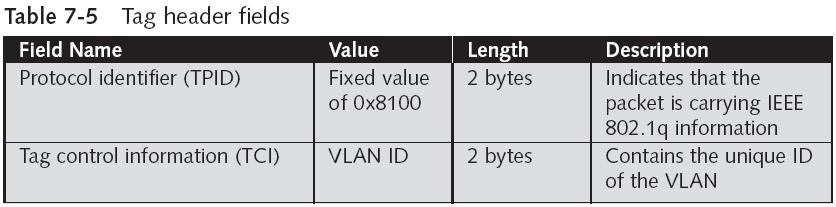

  • IEEE 802.1q

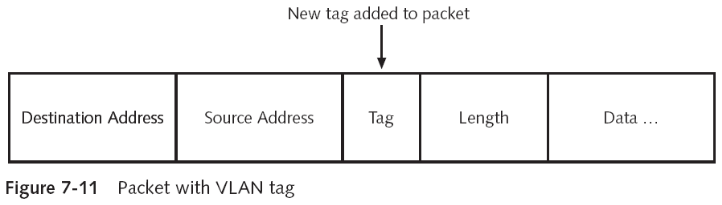

    • Inserts a 4-byte “tag” header within the existing Ethernet packet

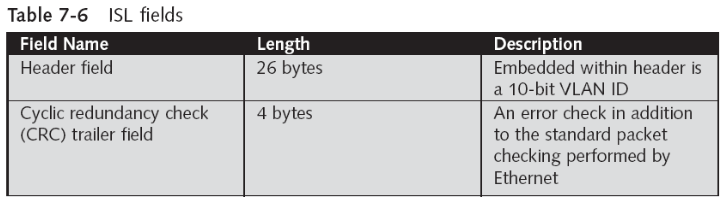

  • Cisco Systems’ Inter-Switch Link (ISL)
    • “Wraps” the original Ethernet packet with 30 bytes of additional information

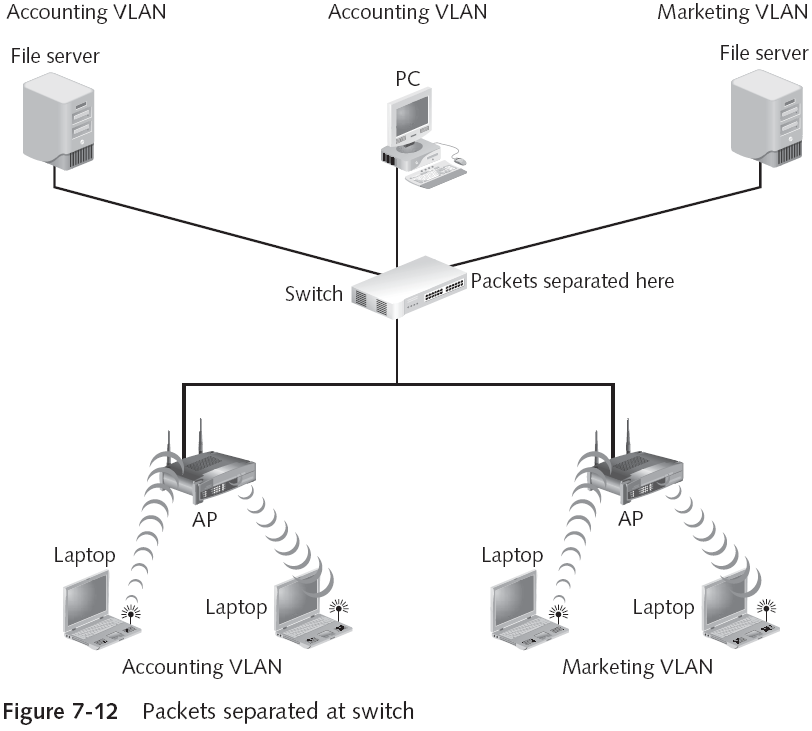

• Wireless VLANs
  • Can be used to segment traffic
  • Flexibility depends on which device separates the packets and directs them to different networks
    • Switch-based configuration does not handle roaming users well

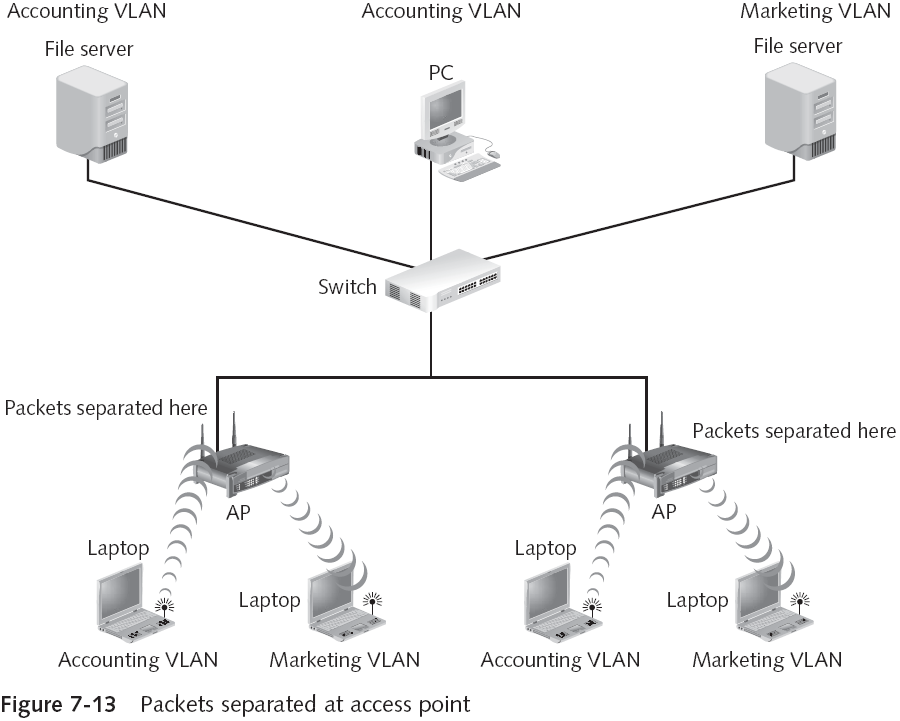

    • AP-based configuration
      • AP is responsible for separating the packets
      • Different VLANs are transmitted by the AP on different SSIDs

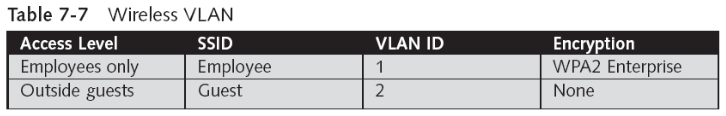

• Wireless VLANs
  • Many organizations set up two wireless VLANs: employees and guests
  • Wireless VLANs allow a single access point to service both VLANs

Hardware Placementslides 44–45

• Placing the hardware in a physically secure location is also important for security

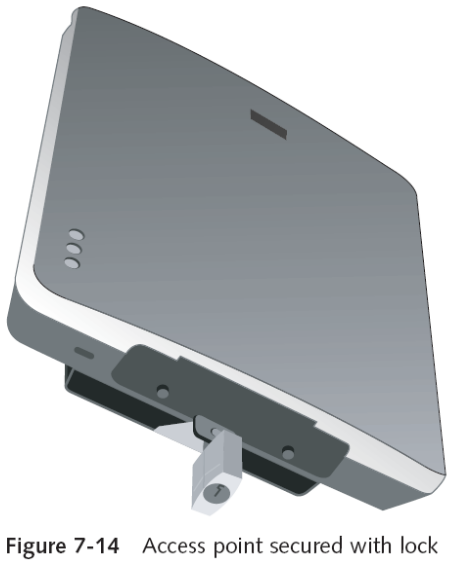

• APs should be securely fastened to a wall, pole, or similar object to deter thieves
• Plenums
  • Air-handling space above drop ceilings used to circulate and otherwise handle air in a building
  • Placing an AP in a plenum can be a hazard
    • Enclose AP within a plenum-rated enclosure to meet fire safety code requirements

Wireless Device Securityslide 46

• Security of the wireless devices themselves should not be overlooked
• Includes:
  • Personal firewall
  • Antivirus
  • Antispyware
  • Patch software
  • Tools to identify new classes of attacks

Personal Firewall Softwareslides 47–48

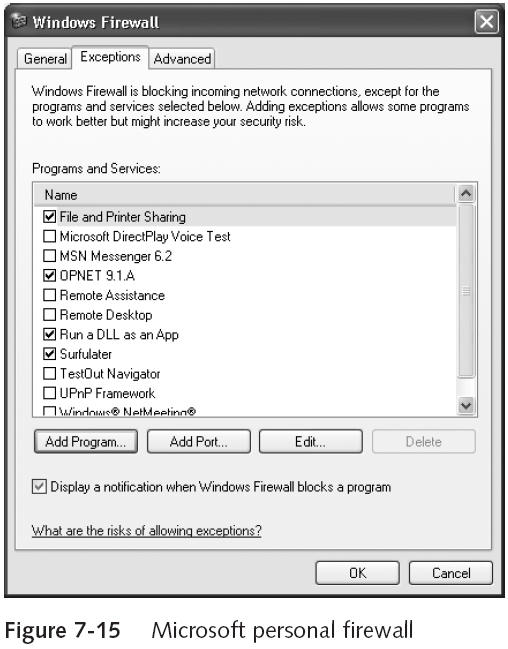

• Each wireless device should have its own software firewall installed
• Provides a “double layer” of protection
• Personal firewalls close and hide all unused ports
  • Attackers cannot even see which ports to attack
• Use of ports is governed by a set of rules
• Personal firewalls also support outbound monitoring

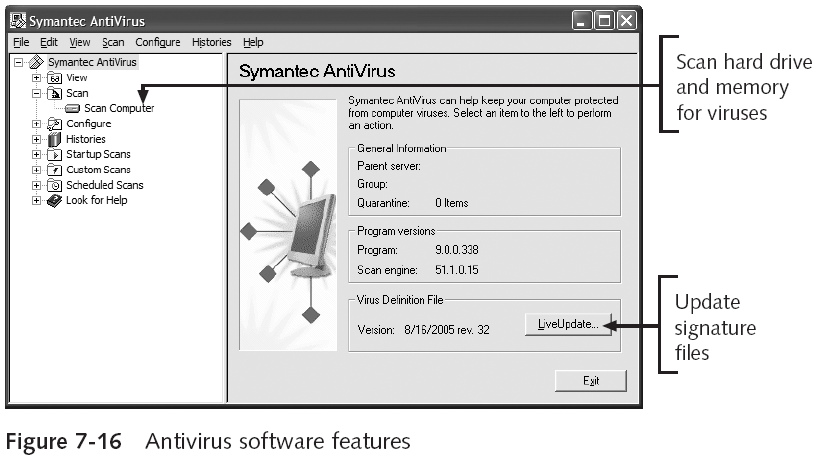

Antivirus Softwareslides 49–51

• Best defense against viruses
• Can scan a computer for infections and isolate any file that contains a virus
• Drawback
  • Definition files or signature files must be continuously updated to recognize new viruses

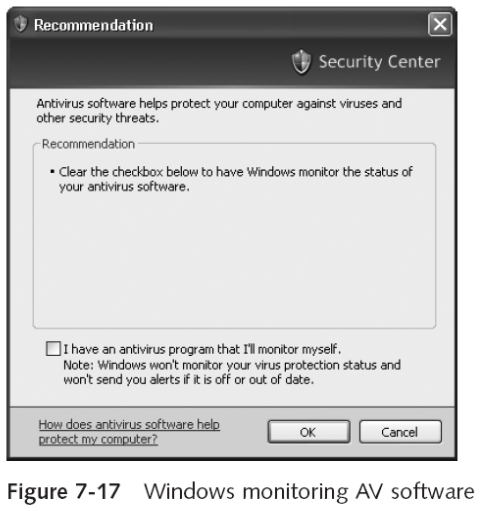

• Most antivirus software packages work with the Windows Security Center
  • Central location to manage some security tools

Antispywareslide 52

• Helps prevent computers from becoming infected by different types of spyware
• Similar to AV software
  • Must be regularly updated
  • Provides continuous real-time monitoring and performs a complete scan
• Additional features
  • Detailed information
  • System explorers
  • Tracks eraser
  • Browser restore

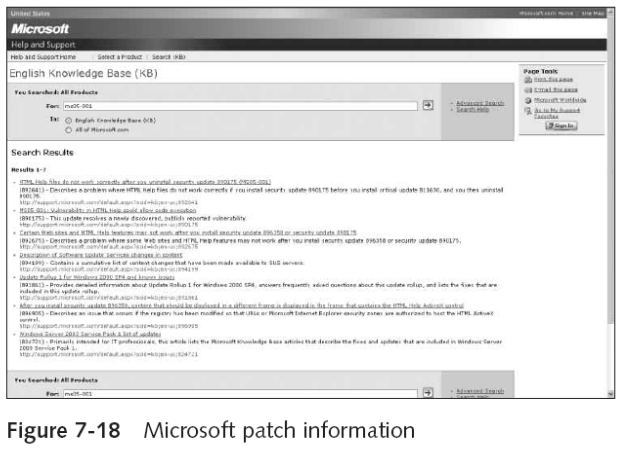

Patch Softwareslides 53–55

• Describes software security updates
  • Provided by vendors for their application programs and operating systems
• Generally designed to fix security vulnerabilities
• Microsoft patch classifications
  • Critical
  • Important
  • Moderate
  • Low

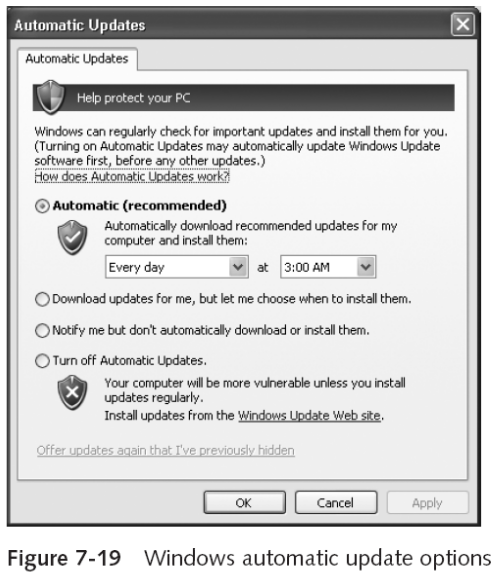

• Desktop computers can automatically receive Windows patches

Rootkit Detectorsslides 56–57

• Rootkit
  • Software tools that attacker uses to break into a computer
    • And obtain special operating system privileges
      • To perform unauthorized functions and hide all traces of its existence
  • Includes several programs designed to:
    • Monitor traffic, create a back door into the computer, change log files, and attack other network devices
• Rootkit itself causes no direct damage to computer

• Fundamental problem in detecting rootkits
  • User can no longer trust the operating system
• Programs are available to help detect rootkit
• Disinfecting a computer that has a rootkit is difficult
  • Most security experts recommend to reformat the hard drive and reinstall the OS
